Bi-fold Doors / Mulit-fold

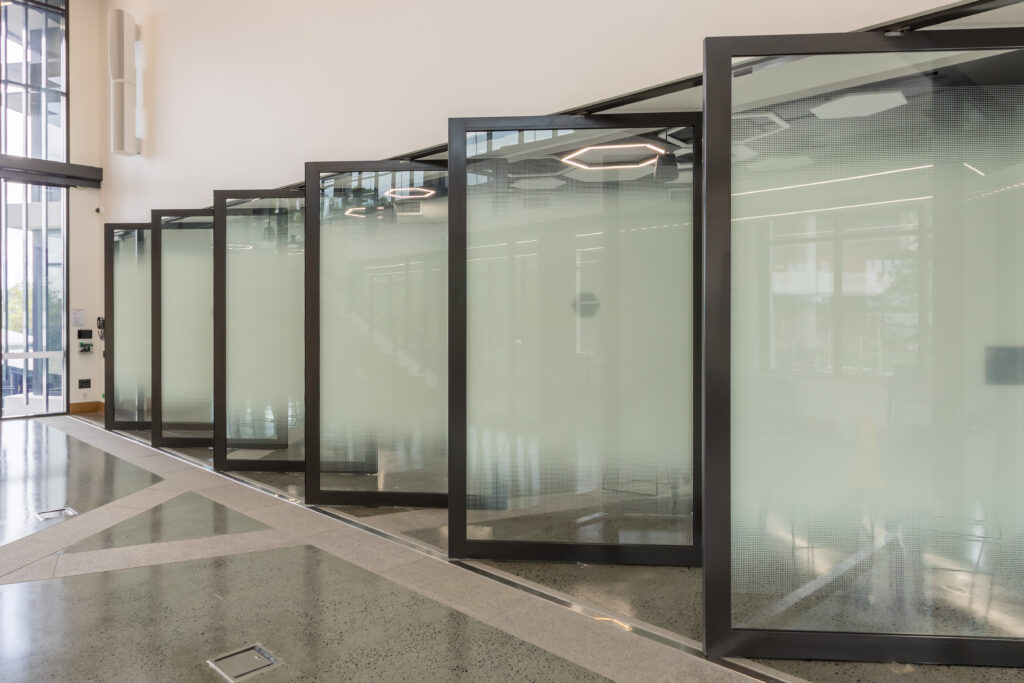

Multi-Fold Door Range
Designed with large floor to ceiling applications in mind, the Hawkesbury Multi-Fold Door Range combine full sized commercial perimeter framing with specially designed commercial door stiles.
A functional alternative to traditional door units in lighter commercial and residential applications, the Hawkesbury E2 and E3 door range removes the barriers to allow flow between indoor and outdoor living. Whether the doors are opened or securely fastened into place as sturdy, impenetrable walls, the Alspec Hawkesbury Door is the only choice.
Key Features
- Smooth top-rolling operation
- Weatherseal technology keeps wind, rain and cold air where it belongs
- The stabilising centre hinge controls door stile deflection and bowing on tall doors
- Surelock™ system allows for simple vertical height adjustment when needed
- Uncompromised security with flush bolts and proprietary door furniture
- Accepts from 6mm – 13.5mm single glazed and up to 28mm double glazed units, allowing the designer to achieve the most demanding thermal and acoustic specifications
- Concealed carriers under door panels minimising open tracks for debris to collect
Technical Specifications
Frame Dimensions
| Option 1 | 101.6 x 44.5mm |
Maximum Recommended Sizes
| Height | 3000mm |
| Width | 1000mm |
| Weight | 60kg E2A / 115kg E3A |
Acoustic Performance
| Glass Type Rw (C; Ctr) | |
|---|---|
| 6.38mm Laminate | 29 dB |
| 10.38mm/ 12/ 6.38mm IGU | 34 (25mm Optilam IGU) dB |
Thermal Performance
| Uw range SG | 4.4 – 6.2 |
| SHGC range SG | 0.26 – 0.59 |
| Uw range DG | 3.2 – 4.0 |
| SHGC range DG | 0.15 – 0.51 |
Glazing Details
| Single Glazed | 6 – 13.5mm |
| Double Glazed | 18 – 28mm |
