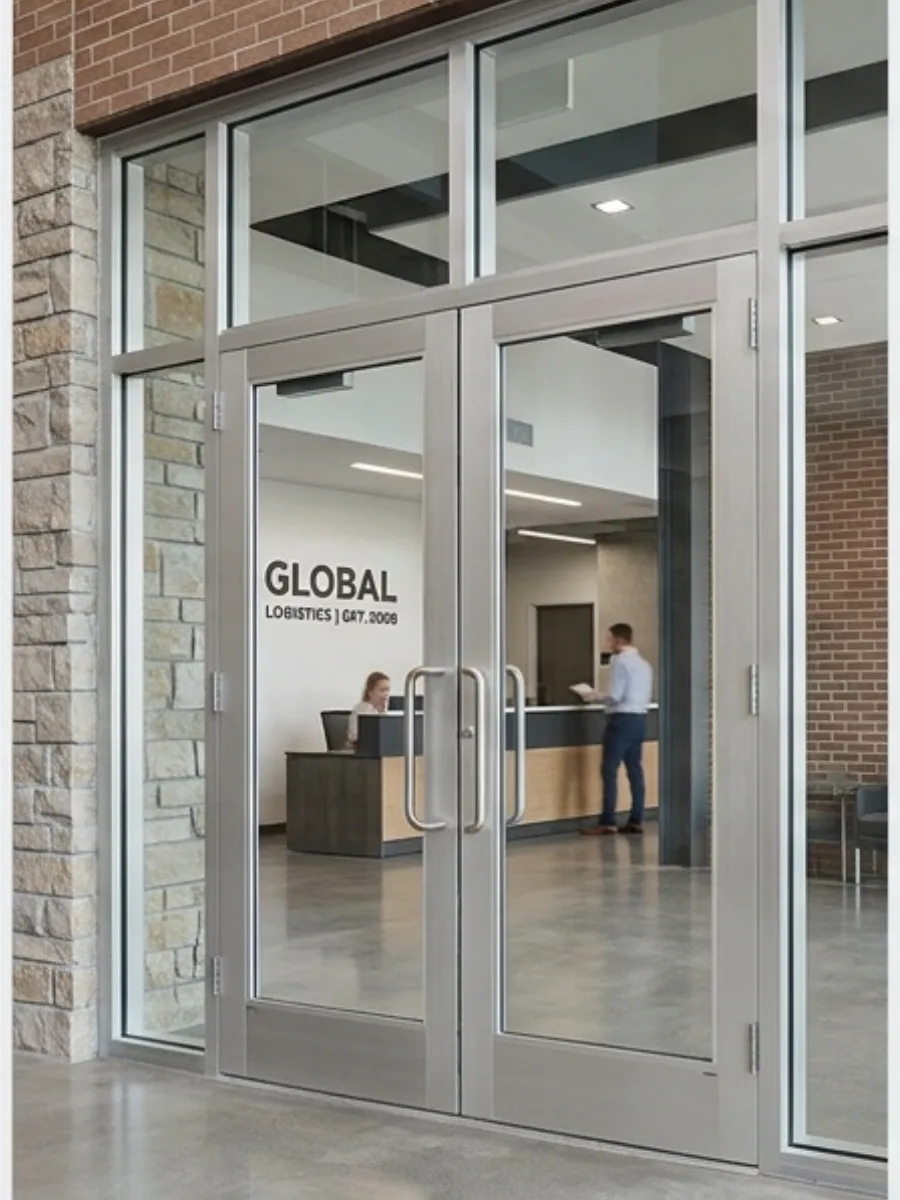

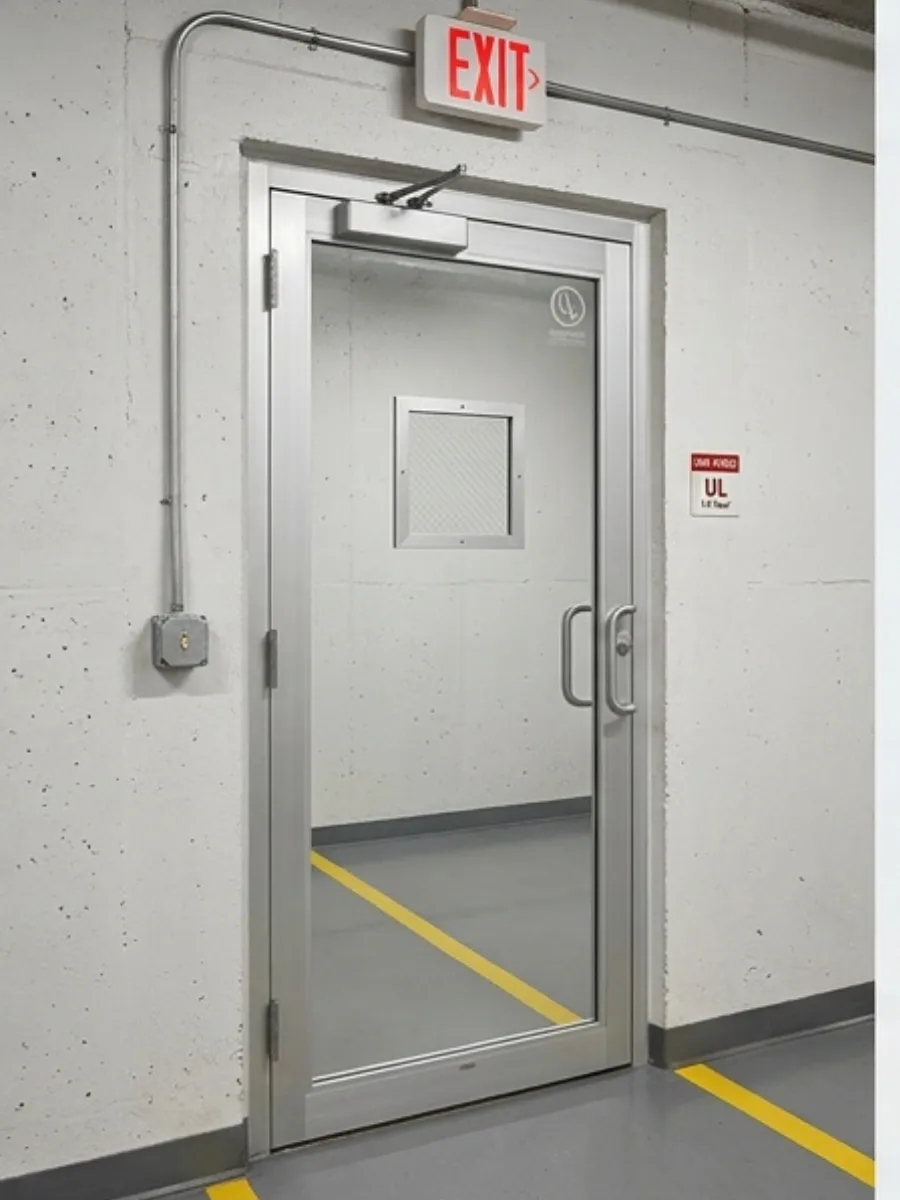

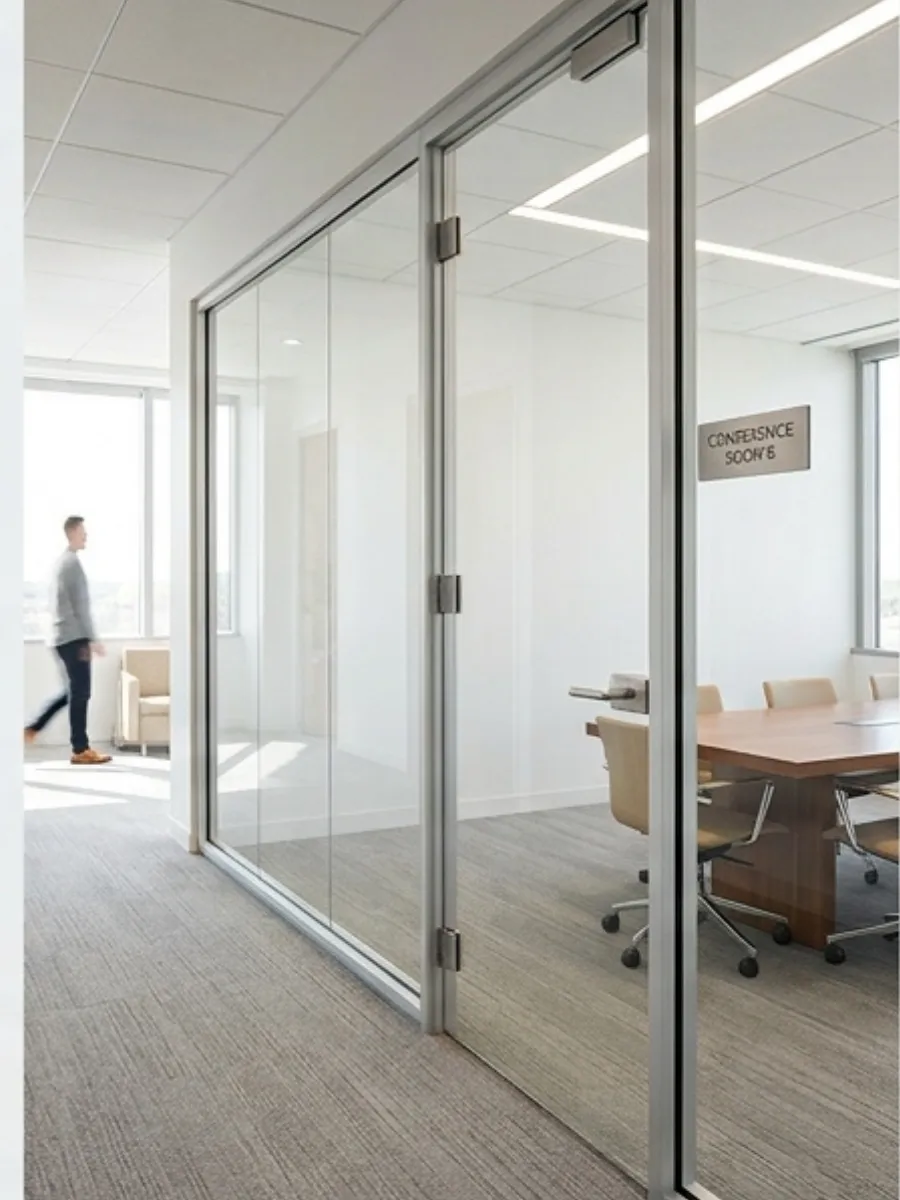

Hinged Doors
The Alpsec® Swan Evo™ 45mm
Commercial Door is a versatile shopfront door that is easy to fabricate and install. Suitable for a wide range of applications, the Swan Evo™ 45mm Commercial Door can be used in hinged, pivoted or sliding configurations. The Swan Evo™ 70mm Commercial Door can be used in hinged configurations. The Swan Evo™ integrates seamlessly with the Alspec® commercial framing systems.
Featuring a new and improved clamping spigot set, for superior performance and easy fitment, integrated heal and toe block and captive glazing option, the Swan Evo™ provides the ideal solution where superior operation and performance is required. Glazing could not be simpler with the colour coded wedges from standard Alspec® systems being utilised to deal with the many diverse glass options.
Key Features
- Stronger sash through the use of custom designed clamping spigot set
- 19mm glazing pocket accepts up to 13.5mm single glazed
- Double glazing option accepts up to a 38mm IGU
- Colour coded glazing wedges for ease of identification
- Easily adapts to Alspec’s McArthur Evo and Hunter Evo framing systems
- Range of thresholds such as disabled ramp
- 45mm available in hinged pivoted of sliding options, 70mm available in hinged option
- Panel heights up to 3050mm subject to project requirements and site conditions
Technical Specifications
Door Dimensions
| Option 1 | 45 x 75mm |
| Option 2 | 45 x 80mm |
| Option 3 | 45 x 120mm |
| Option 4 | 45 x 125mm |
| Option 5 | 70 x 100mm |
Maximum Recommended Sizes
| Height | 3050mm |
| Width | 2400mm* |
| Weight | 225kg* |
Acoustic Performance
| Glass Type Rw (C; Ctr) | |
|---|---|
| 6.38mm Laminate – McArthur Evo 101.6mm | 32 dB |
| 10.5mm Vlam Hush – McArthur Evo 101.6mm | 35 dB |
| 6.38mm Clear Laminate / 12mm / 6.5mm Vlam Hush – ecoFRAMEplus 101.6mm | 37 dB |
| 6.38mm Clear Laminate / 12mm / 6.38mm Clear Laminate – ecoFRAMEplus 101.6mm | 38 dB |
Thermal Performance
| Uw range SG | 4.2 – 6.0 |
| SHGC range SG | 0.30 – 0.69 |
| Uw range DG | 3.3 – 3.8 |
| SHGC range DG | 0.16 – 0.58 |
